During drilling, the interaction between the diamond bit and the rock formation is intensely abrasive. Even the highest-quality bits experience radial wear, which gradually reduces their effective cutting diameter. This wear causes the drill hole to become slightly tapered—wider at the top and narrower at the bottom. For subsequent drilling runs or when tripping in a new bit, this taper poses a severe risk: the new, full-diameter bit or the drill string itself can get stuck, leading to costly delays, potential tool loss, or even a abandoned hole.
This is precisely why a reaming shell is a non-negotiable part of the bottom hole assembly (BHA). Mounted directly between the outer tube and the diamond bit, its primary function is to keep the drill hole size to the nominal diameter. It actively reams out any slight taper or restriction, ensuring a smooth, consistent pathway for all subsequent tools. Furthermore, a reaming shell stabilizes the core barrel and prevents the swing, centralizing the string for straighter, more accurate drilling and higher-quality core recovery. [1]
Key Design Elements of a Super-Heavy Duty Reaming Shell
Standard reaming shells are sufficient for softer or moderately hard formations. However, in deep-hole exploration, hard and abrasive rock layers, or in complex structural geology, the demands on the tool multiply exponentially. This is the domain of the Super-Heavy Duty Reaming Shell.
The distinction lies in a purpose-built design focused on extended service life and enhanced stabilization. Here are the key engineering features that define a top-tier super-heavy duty shell:
Advanced Diamond Technology: The cutting structure is paramount. Leading manufacturers utilize a strategic mix of high-quality natural and synthetic diamonds. This combination is engineered for optimal cutting efficiency and wear resistance across diverse formations. Some configurations may also incorporate Thermally Stable Polycrystalline (TSP) diamonds for additional protection and performance in high-temperature or highly abrasive zones.
Reinforced Matrix Formulation: The matrix—the metal alloy that holds the diamonds—must withstand severe erosion. A super-heavy duty shell features a wear-resistant matrix reinforced with carbide particles. This significantly reduces erosion from drilling fluids and rock cuttings, preserving the diamond exposure and structural integrity of the tool for far longer.
Robust Structural Integrity: The shell body itself must be built to last. Robust manufacturing processes ensure reliable performance under difficult drilling conditions, including high torque, lateral vibrations, and significant downhole pressure. The goal is a long-lasting design for prolonged life across various rock formations, reducing the frequency of tool changes and tripping time.[2]
The ROCKCODE Commitment to Engineered Durability
At ROCKCODE, we meticulously design ultra-heavy-duty borehole casings to reliably handle a wide variety of formations. Typical strata include:
Hard, Abrasive Crystalline Rock: This includes igneous and metamorphic formations such as granite, granodiorite, quartzite, and gneiss. These rocks rapidly wear down standard matrix due to their high quartz content and hardness.
Basalts and Dolerites: While sometimes less abrasive, their toughness and potential for micro-fracturing demand a robust shell with good impact strength to maintain gauge and stability.
Conglomerates and Breccias: These heterogeneous formations, containing hard clasts cemented in a softer matrix, present a dual challenge of intermittent shock and abrasive wear. The tool's robust construction and diamond mix help manage the variable cutting loads.
Our super-heavy duty shells incorporate a matrix mixed with both natural and synthetic diamonds during production. This tailored formulation is the result of extensive field testing, aimed at extending its service life while achieving optimal performance in reaming and drilling operations. We employ either traditional matrix sintering technology or advanced matrix silver brazing technology, selecting the optimal manufacturing method based on the specific performance requirements of the application.

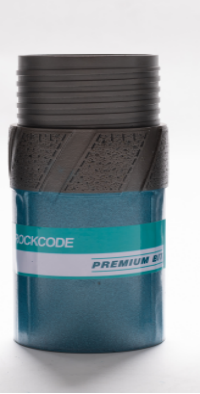

ROCKCODE Heavy-Duty (Surface-set & Impregnated Reaming Shell)
Recognizing that stabilization is a system-wide concern, we design our reaming shells to integrate seamlessly with the entire drill string. Their role in serving a stabilizing function at the tail end of the drilling assembly is critical.
In geological exploration, time is money, and uncertainty is risk. A Super-Heavy Duty Reaming Shell is far more than a simple accessory; it is a vital insurance policy for your drilling campaign. By ensuring borehole gauge, providing critical stabilization, and surviving where other tools fail, it safeguards your investment in rig time, personnel, and valuable core samples.
→ For more information about ROCKCODE’s Super-Heavy Duty Reaming Shell, please visit: https://www.rockcodebit.com/reaming-shell-stabilizer.html
→ Email us at: info@rockcodebit.com
→ Information in this article is for general reference only. For specific drilling projects and drilling bits, please consult qualified professionals. Thank you.
